Laser Focus and Alignment: Separate Height, Position, and Service
Diagnose focus and positioning problems with controlled checks, supported focus tools, and clear limits on optical alignment work.
Focus, artwork placement, and optical alignment are different problems. Treating all three as a request for more power makes troubleshooting less useful. Start by describing the symptom and identifying which reference may have changed. Use the manufacturer-supported procedure for your machine rather than importing a mirror-adjustment routine from a different laser.
Affiliate disclosureAs an Amazon Associate we earn from qualifying purchases made through links on this page. Commissions never change our ratings.
Describe the failure before adjusting anything
Write down what changed:
- Wider mark
- Displaced design
- One area differs from another
- Reference mismatch: an ordinary job no longer matches its reference sample.
Save the file and photograph the result. Include the material and configuration, because a new blank or fixture can make an old preset a poor comparison.
Do not start with the assumption that the laser source has weakened. First separate appearance from placement. A neatly formed design in the wrong location points you toward a different investigation than a correctly placed design with poor detail. Our maintenance guide helps check service history, while the following steps organize focus and software references before any more invasive work is considered.
Establish the supported focal reference
Follow the machine's instructions for focusing on the relevant material surface. LightBurn explains that focal height affects the laser spot at the material.[5] Record the method used rather than writing only autofocus in your notes. If the machine uses a probe, spacer, or entered distance, the setup record should identify the relevant reference and current work support.
Confirm that the material is supported as intended and that the setup matches the instructions. Do not assume a focus routine resolves every irregular or curved surface automatically. For cylindrical work, follow the documented rotary procedure and use our rotary setup checklist. A changed base or object geometry deserves its own focus check rather than a copied value from flat stock.

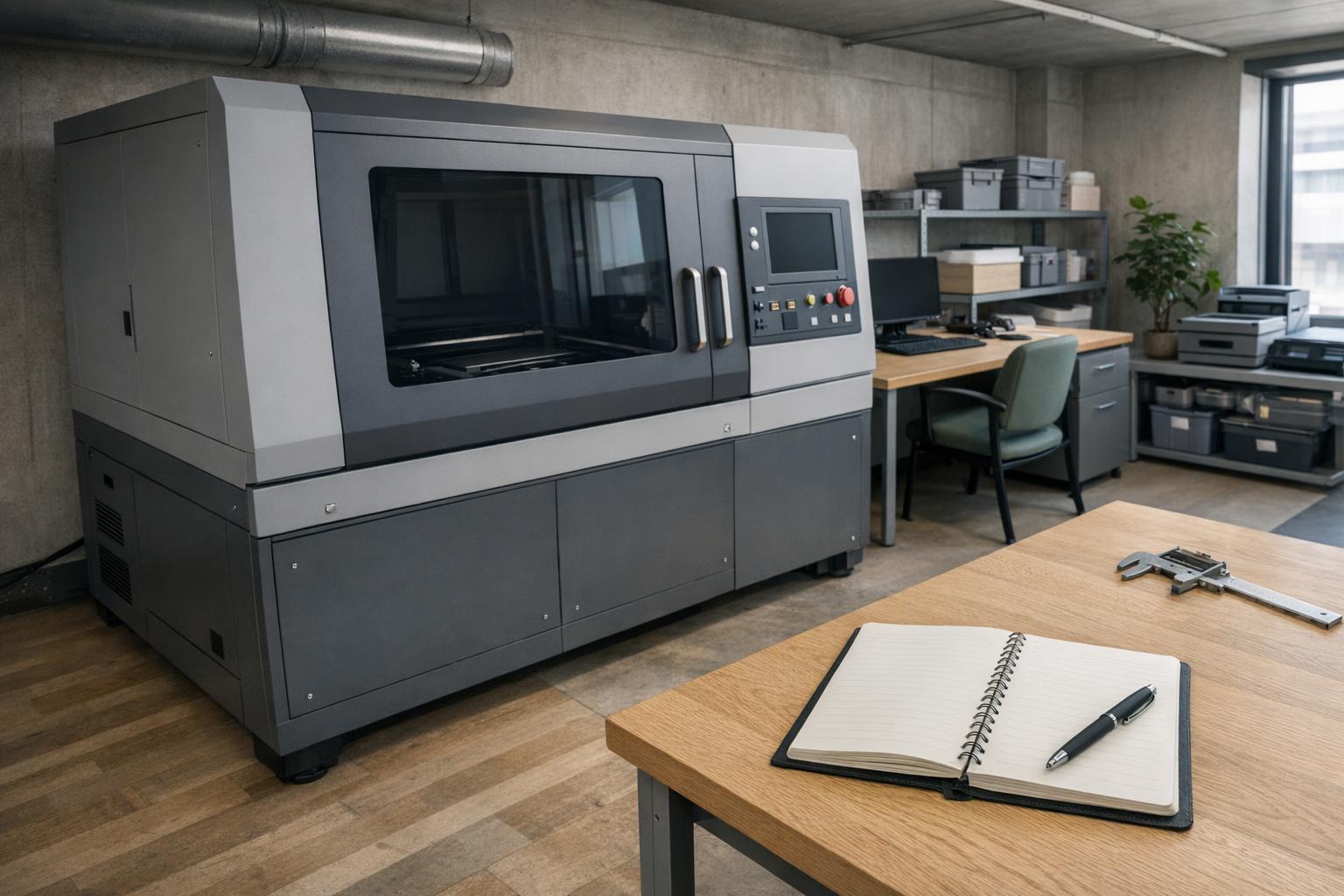

Use automated focus routines only when supported
LightBurn's focus routine requires a motorized Z axis controllable through LightBurn and enabled Z-axis control.[5] If your system does not meet those conditions, use the manufacturer's approved focusing procedure instead. Do not enable movement settings simply to make a focus dialog available on equipment whose setup you have not verified.
For a supported focus routine, understand the starting reference and permissible movement before running it. Keep the stock and pattern simple enough to inspect. Record the result and use it to refine the supported setup, not to justify operating beyond mechanical limits. A focus routine is a tool within the machine's documented capabilities; its presence in software does not establish hardware compatibility or make every entered height safe.
Check the coordinate system separately
LightBurn's current-position mode uses the head position at the start of the job, while a user origin is a saved reference.[6] If artwork lands in the wrong place, verify the chosen mode and origin before changing the drawing. Note whether the workpiece, fixture, or software reference moved since the last successful job.
Use a clearly labeled fixture and a saved project record to make this check repeatable. Confirm the permitted framing method before processing. Our software preflight guide walks through file size, operation, and positioning checks. Repeatedly dragging artwork to compensate for an unexplained reference change can hide the cause and make the next job harder to set up accurately.
Keep optical service within its documented scope
If the manufacturer identifies optical alignment as the required next step, obtain the procedure for the exact machine and determine whether it is an owner task or a service task. Do not substitute a procedure from a superficially similar system. FDA identifies severe direct and reflected beam hazards for Class 4 lasers.[1] That is a reason to respect service boundaries, not an invitation to improvise protective arrangements.
Send support a concise package: model, module, symptoms, sample photos, file, and the checks already performed. Ask what should happen next and which instructions apply. Avoid removing protective parts or firing with an altered enclosure while waiting for an answer. Documented service can proceed once the appropriate procedure, equipment, and responsible person are established.
| Problem | Symptom | First check |
|---|---|---|
| Focus | Correct placement, poor detail | Supported focal reference for the surface |
| Position | Neat design in the wrong place | Coordinate mode and origin |
| Optical alignment | Persists after focus and position checks | Manufacturer procedure and service scope |
Confirm the repair with a known reference
After an authorized adjustment or maintenance step, run a simple reference job on approved matching stock using the documented operating configuration. Compare the result with the original symptom and the previous known-good sample. Change only the variable required by the procedure so you can tell whether the intervention helped.
Record what was adjusted, who performed it, and which document was followed. If the symptom persists, preserve the evidence and return to support rather than layering unrelated corrections. Keep a separate note for cosmetic preferences such as deliberately broader engraving; those are process choices, not proof of a hardware fault. A useful diagnosis ends with an explained change and a repeatable result, not merely a different power setting.
